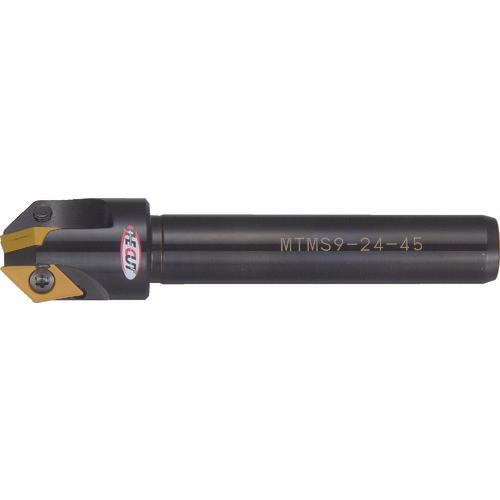

THE CUT　Throw-away chamfering cutter SUPER TOOL Chamfering round 45

[Features]Although it is a chamfering cutter, processing like an end mill is possible. ●The standard positive tip of each manufacturer can be attached. ●By adopting a positive tip for lathes, it demonstrates light sharpness. ●Highly rigid body design and three-sided restraint hold the tip firmly. ●The maximum diameter can be accommodated up to the processing range of the machine.

[Use] ●Chamfering, grooving, and ramping (MTMS20 and 30 only).

[Specifications] - Shank diameter (mm): 16 - Minimum chamfer diameter (mm): 9 - Blade diameter (mm): 23.5 - Number of blades: 3 - Tip angle (°): 90 - Overall length (mm): 114 Maximum chamfer diameter (mm): - Neck length (mm): 34 Shank length (mm): 80 Neck length (mm): 34

[Specification 2] Tip sold separately (Recommended tip part number: MT-DE11T304R (RH))

[Material/Finish] Tool steel

[Set contents/accessories]
-

[Caution] ● Please use a commercially available standard tip. ●Because there is a risk of damage, please use protective equipment such as covers and safety glasses. ●Be careful not to injure yourself due to scattering or winding of chips. ●Be careful when attaching and detaching the insert tip.
