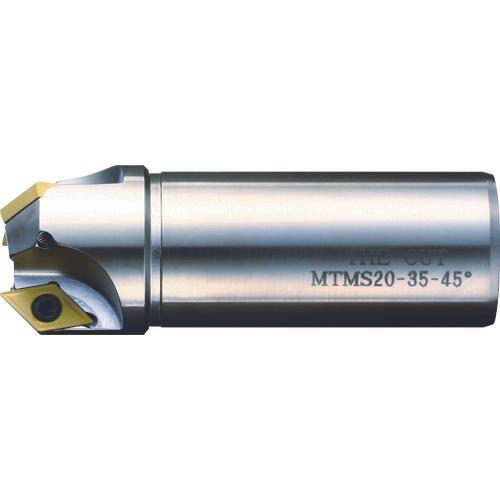

THE CUT　Throw-away chamfering cutter SUPER TOOL Chamfering round 45° 3

[Features]Although it is a chamfering cutter, processing like an end mill is possible. ●The standard positive tip of each manufacturer can be attached. ●By adopting a positive tip for lathes, it demonstrates light sharpness. ●Highly rigid body design and three-sided restraint hold the tip firmly. ●The maximum diameter can be accommodated up to the processing range of the machine.

[Applications] ● Chamfering, grooving, and ramping.

[Specifications] - Shank diameter (mm): 32 - Minimum chamfer diameter (mm): 20 - Blade diameter (mm): 35 - Number of flutes: 3 - Tip angle (°): 90 - Overall length (mm): 100 Maximum chamfer diameter (mm): - Neck length (mm): 30 Shank length (mm): 70 Neck length (mm): 30

[Specification 2] Chip sold separately (Compatible chip part number: MT-DE11T30 )

[Material/Finish] Tool steel

[Set contents/accessories]
-

[Caution] ● Please use a commercially available standard tip. ●Because there is a risk of damage, please use protective equipment such as covers and safety glasses. ●Be careful not to injure yourself due to scattering or winding of chips. ●Be careful when attaching and detaching the insert tip.
