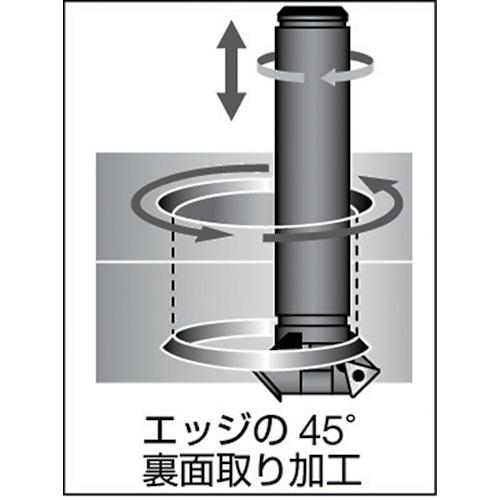

[Features]● Supports multi-purpose machining by vertically splitting the tip. ● Suppresses chattering when machining side V-grooves. ● Chamfering, back chamfering, and side V-grooving are possible.
[Use] ● Chamfering.
[Specifications] - Shank diameter (mm): 12 - Blade diameter (mm): 19.5 - Number of blades: 1 - Point angle (°): 45 - Overall length (mm): 150 - Compatible tip: T22MOR type (TiN coating: super Hard K10 type) SPMT090304 type (TiAIN coating: Carbide M20 type) Dedicated tip: SPMT090304
[Specification 2] -
[Material/Finish] Steel
[Set Contents/Accessories] -Clamp screw, wrench (tip sold separately)
