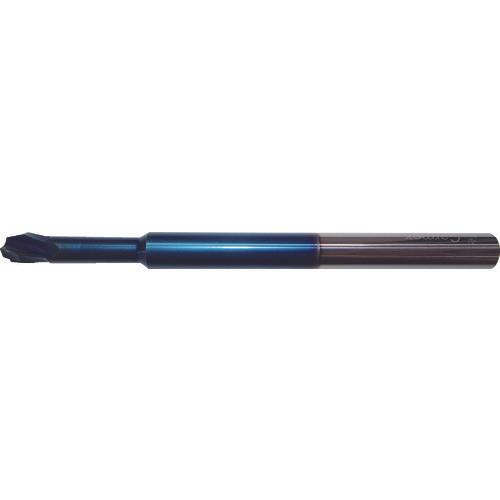

Mini chamfer 150° blade for NOGA cross holes

[Features]● For deburring and chamfering oblique cross holes. ● The blade angle is 150 degrees and the length of the cutting edge is long, and the wide range of the cutting edge makes it effective for deburring oblique cross holes, etc.

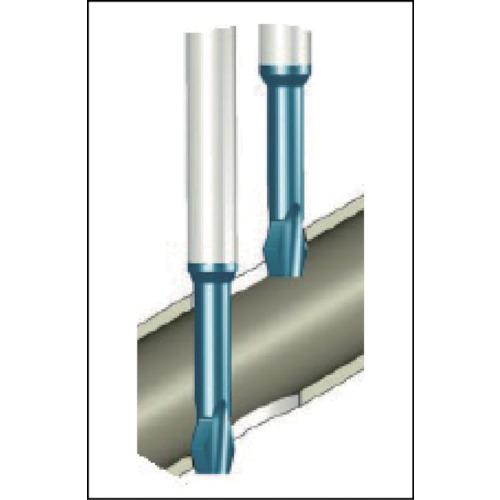

[Use] ●Cover material: carbon steel, stainless steel, cast steel, aluminum, plastic, nickel alloy, titanium alloy, etc. ●A mini chamfer that can remove burrs from cross holes and oblique cross holes by milling.

[Specifications] Shank diameter (mm): 6 Blade diameter (mm): 6 Overall length (mm): 105 Neck length (mm): 24 Chamfering amount (mm): 1.0 Surface treatment: Titanium aluminum nitride (AlTiN ) Coating (MT8)

[Specification 2] ● Tip angle: 30° ● Body angle: 150° ● Chamfering angle: 30° on both sides

[Material/Finish] Ultrafine particle carbide
