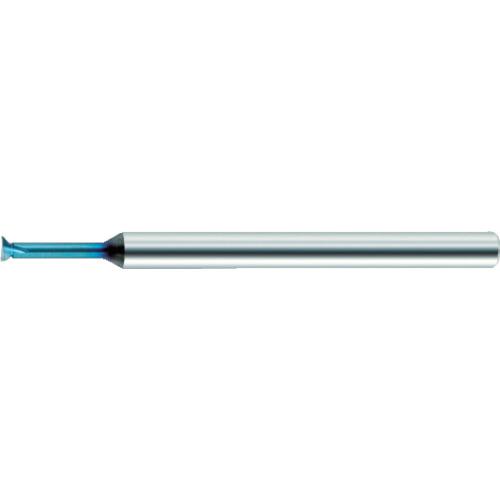

NOGA counterbore mini chamfer 45° blade dovetail blade diameter 6.0mm

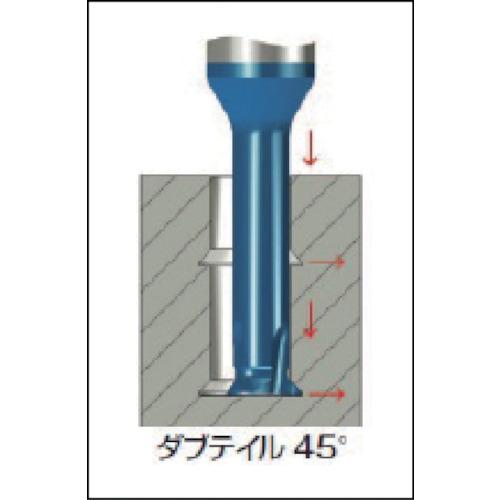

[Features] ● Mini chamfer with back chamfering blade only. ●Suitable for chamfering the reverse side of shallow bottom.

[Use] ●Cover material: carbon steel, stainless steel, cast steel, aluminum, plastic, nickel alloy, titanium alloy, etc. ●A mini chamfer that can be chamfered and deburred by back milling of drilled holes.

[Specifications] Shank diameter (mm): 6 Blade diameter (mm): 6.0 Total length (mm): 58 Neck length (mm): 24.0 Chamfering amount (mm): 1.5 Surface treatment: Titanium aluminum nitride (AlTiN ) Coating (MT8)

[Specification 2] Tip angle: 45° Chamfering angle 45°

[Material/Finish] Ultrafine particle carbide

[Set contents/accessories]
-

【Note】
-
