NOGA counterbore mini chamfer 90° blade diameter 3.5mm

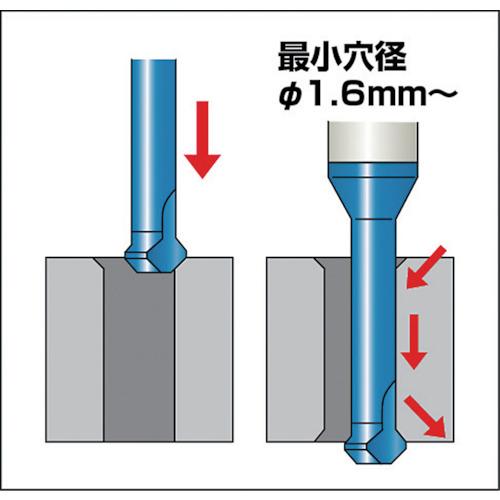

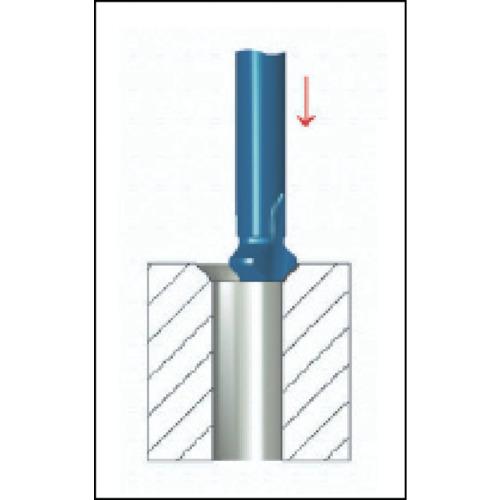

[Features]● Carbide solid chamfering cutter that can chamfer the back of small diameter holes (minimum blade diameter 1.5 mm). ●Suitable for machining. ●The sharpness is smooth because it is a spiral blade. ●A mini chamfer that can be chamfered and deburred by milling both the front and back of drilled holes.

[Use] ●Cover material: carbon steel, stainless steel, cast steel, aluminum, plastic, nickel alloy, titanium alloy, etc. ●A mini chamfer that can be chamfered and deburred by milling both the front and back of drilled holes.

[Specifications] Shank diameter (mm): 4 Blade diameter (mm): 3.5 Overall length (mm): 51 Neck length (mm): 8.8 Chamfering amount (mm): 0.7 Surface treatment: Titanium aluminum nitride (AlTiN ) Coating (MT8)

[Specification 2] Tip angle: 90°

[Material/Finish] Ultrafine particle carbide

[Set contents/accessories]
-

【Note】
-
