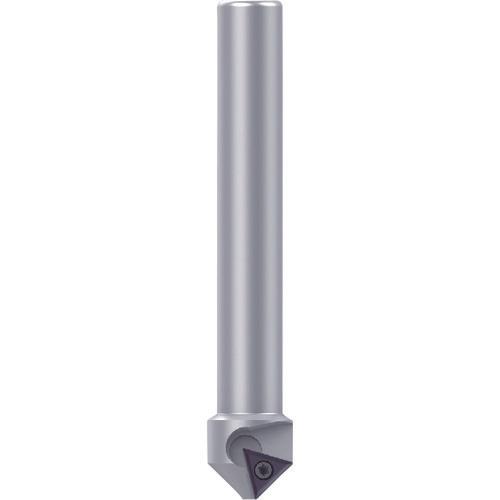

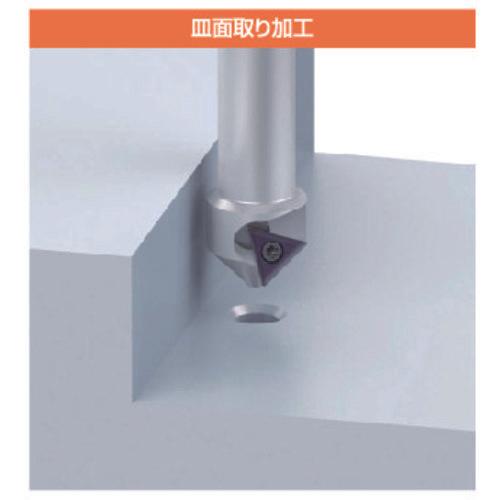

[Features]● Can also be used for drill presses and electric drills. ●Ideal for chamfering small diameter holes. ●High-speed steel with high durability is used for the body material. ●Long life is realized by fine particle cemented carbide + new coating tips. ●Positive tip with 3 corners. ●MBM4513T long type.

[Use]
-

[Specifications] - Shank diameter (mm): 10 - Minimum chamfer diameter (mm): 2.5 - Number of flutes: 1 - Tip angle (°): 45 - Tip diameter (mm): 2.41 - Overall length (mm): 143 Chamfering angle (°): 45 ● Chamfering diameter (mm): 11 ● Chamfering diameter (mm) inner diameter: 2.5 ● Maximum chamfering diameter (mm): 11 ● Applicable tip: TCXT080102

[Specification 2] Number of blades: 1

[Material/Finish] High-speed steel

[Set contents/accessories]
-

【Note】
-
