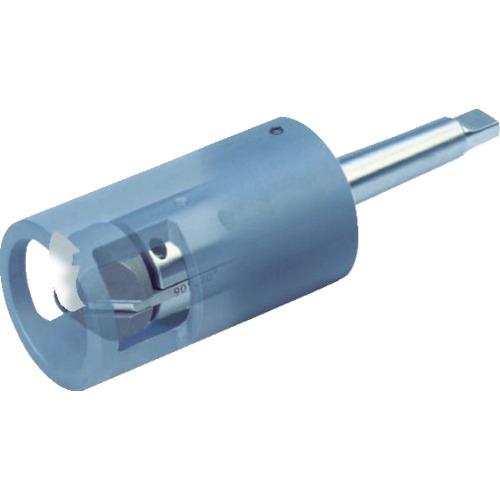

NOGA K3 inner and outer diameter countersink 90° MT-2 shank

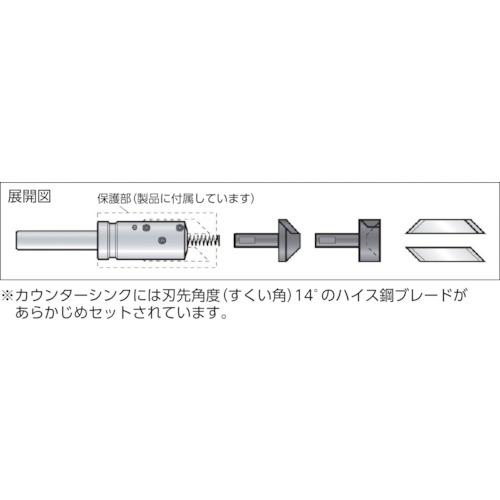

[Features]●The inside and outside of the pipe can be chamfered at the same time, and each can be set separately. ● KOPAL's chamfering UNIT is made up of a combination of the main body, blade and guide. ●A conical guide whose height can be adjusted by a spring serves to center the workpiece. -The high-speed steel blade is locked with a nut and the protrusion of the blade can be set.

[Applications] ● Chamfering of inner and outer diameters. ●Simultaneous chamfering inside and outside of pipe.

[Specifications] - Chamfering angle (°): 90 - Chamfering diameter (mm) inner diameter: 20 - 30 - A (mm): 61 - Chamfering diameter (mm) outer diameter: 24 - 36 - B (mm): 110 - Shank Size: MT2 ● Model: K3 ● Applicable blade: KP04-320/330

[Specification 2] ● Chamfering is possible within the range of inner diameter 12-24 and outer diameter 14-24mm.

[Material/Finish] Blade (Blade): High speed steel

[Set contents/accessories]
-

【Note】
-
