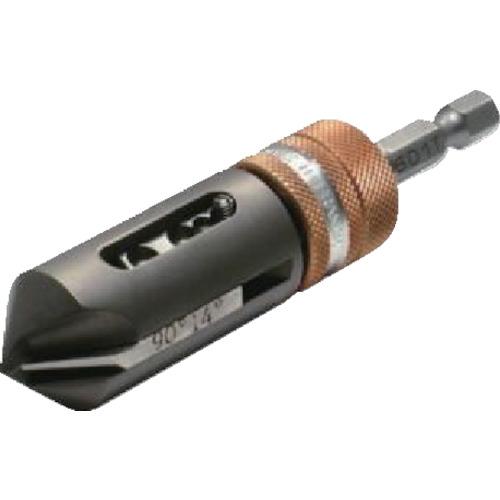

Countersink 90° slim holder for NOGA 4-42 inner diameter MT-2 shank

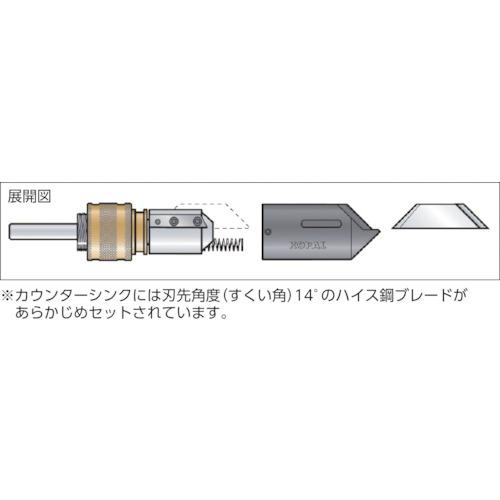

[Features] ● KOPAL's chamfering UNIT consists of a main body, blade and guide. ●A conical guide whose height can be adjusted by a spring serves to center the workpiece. -The high-speed steel blade is locked with a nut and the protrusion of the blade can be set.

[Applications] ● Chamfering inner diameter holes.

[Specifications]-Chamfering angle (°): 90-Chamfering diameter (mm): 5-41-A (mm): 44-B (mm): 135-Shank size: MT2-Model: 4-42-Applicable blade: KP03-350 Cutter tip angle (°): 90

[Specification 2] ●For drilling machines and electric drills

[Material/Finish] Blade (Blade): High speed steel

[Set contents/accessories]
-

【Note】
-
