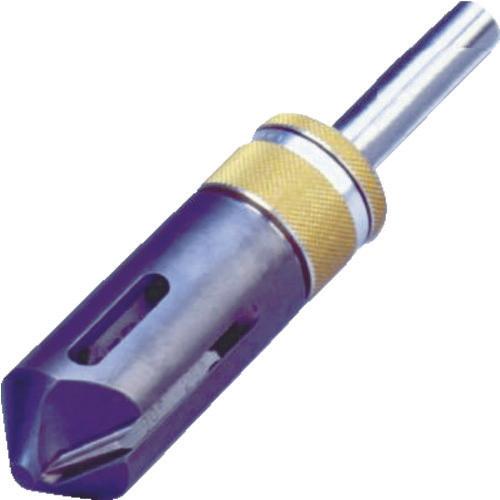

Countersink 90° slim holder for NOGA 3-19 inner diameter 10mm shank

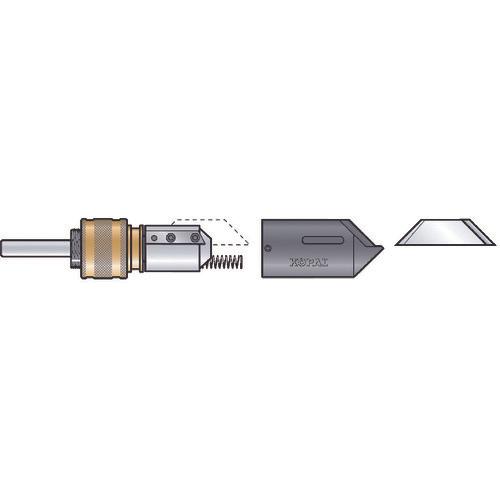

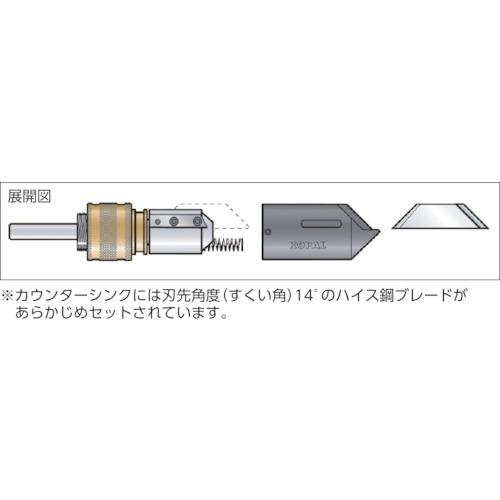

[Features] ● KOPAL's chamfering UNIT consists of a main body, blade and guide. ●A conical guide whose height can be adjusted by a spring serves to center the workpiece. -The high-speed steel blade is locked with a nut and the protrusion of the blade can be set.

[Applications] ● Chamfering inner diameter holes.

[Specifications]-Chamfering angle (°): 90-Chamfering diameter (mm): 3-19-A (mm): 19.5-B (mm): 68-Shank size: straight φ10-Model: 3-19-Applicable blade : KP03-320 Cutter tip angle (°): 90

[Specification 2] ● Chamfering is possible in the range of 3-19 mm. ● Straight shank 10 mm ● For drill presses and electric drills

[Material/Finish] Blade (Blade): High speed steel

[Set contents/accessories]
-

【Note】
-
