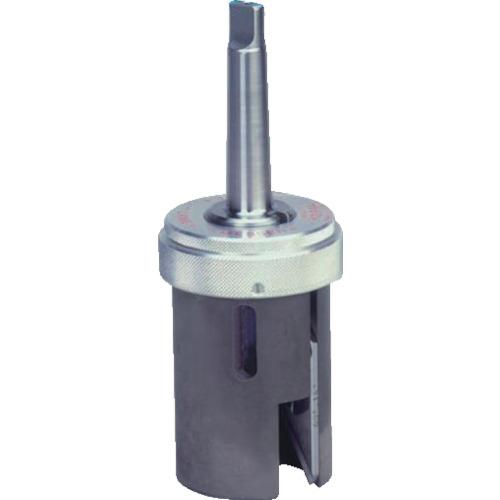

NOGA 40-80 outer diameter countersink 90° MT-3 shank

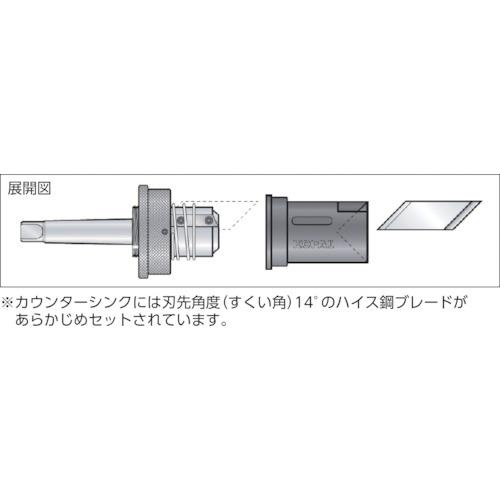

[Features] ● KOPAL's chamfering UNIT consists of a main body, blade and guide. ●A conical guide whose height can be adjusted by a spring serves to center the workpiece. -The high-speed steel blade is locked with a nut and the protrusion of the blade can be set.

[Applications] ● Chamfering the outer diameter. ● Chamfering the end faces of round bars, square bars, etc.

[Specifications] - Chamfering angle (°): 90 - Chamfering diameter (mm): 40 - 77 - A (mm): 80 - B (mm): 90 - C (mm): 95 - Shank size: MT3 - Model: 40-80 ● Applicable blade: KP02-310 ● Cutter tip angle (°): 60

[Specification 2] ● Chamfering is possible within the range of 40-77 mm. ●MT3●For drilling machines and electric drills

[Material/Finish] Blade (Blade): High speed steel

[Set contents/accessories]
-

【Note】
-
