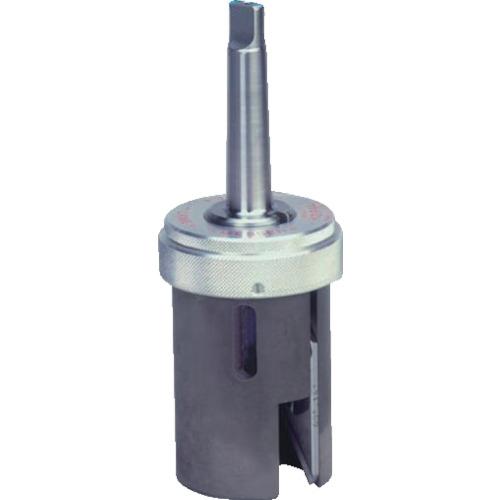

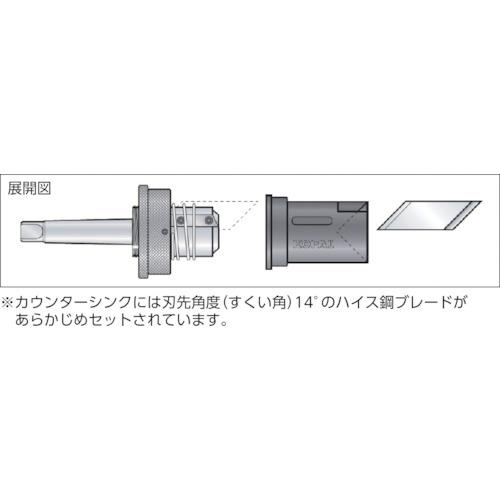

[Features] ● KOPAL's chamfering UNIT consists of a main body, blade and guide. ●A conical guide whose height can be adjusted by a spring serves to center the workpiece. -The high-speed steel blade is locked with a nut and the protrusion of the blade can be set.
[Applications] ● Chamfering of the outer diameter. ● Chamfering the end faces of round bars, square bars, etc.
[Specifications] - Chamfering angle (°): 90 - Chamfering diameter (mm): 9 to 45 - A (mm): 48 - B (mm): 65 - C (mm): 85 - Shank size: MT2 - Model: 10-46 ● Applicable blade: KP02-310 ● Cutter tip angle (°): 90
[Specification 2] ● Chamfering is possible within the range of 9-45 mm. ●MT2●For drilling machines and electric drills
