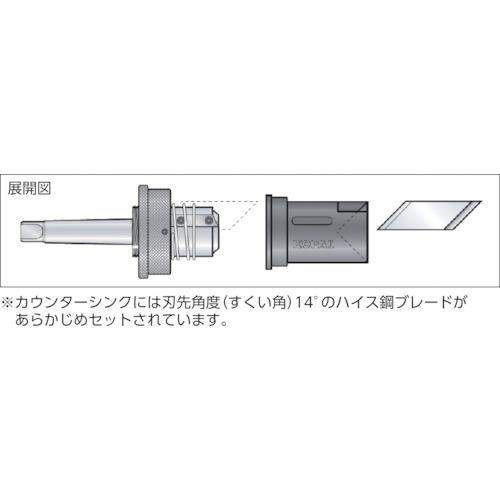

[Features] ● KOPAL's chamfering UNIT consists of a main body, blade and guide. ●A conical guide whose height can be adjusted by a spring serves to center the workpiece. -The high-speed steel blade is locked with a nut and the protrusion of the blade can be set.
[Applications] ● Chamfering of the outer diameter. ● Chamfering the end faces of round bars, square bars, etc.
[Specifications] - Chamfering angle (°): 90 - Chamfering diameter (mm): 2 to 17 - A (mm): 18 - B (mm): 26 - C (mm): 54 - Shank size: MT1 - Model: 2-18 ● Applicable blade: KP02-300 ● Cutter tip angle (°): 90
[Specification 2] ● Chamfering is possible in the range of 2-17 mm. ● MT1 ● For drilling machines and electric drills
