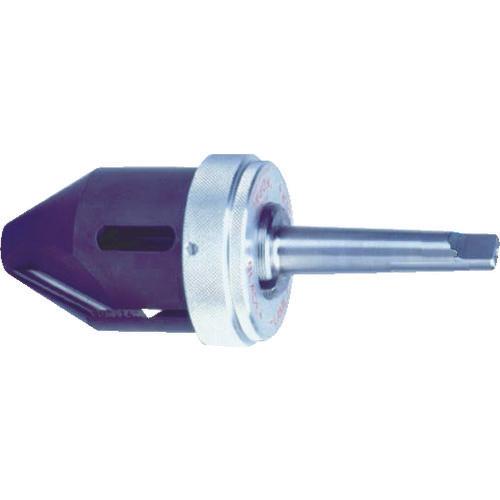

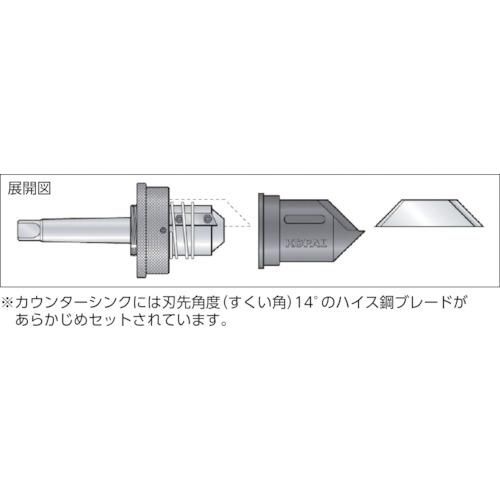

[Features] ● KOPAL's chamfering UNIT consists of a main body, blade and guide. ●A conical guide whose height can be adjusted by a spring serves to center the workpiece. -The high-speed steel blade is locked with a nut and the protrusion of the blade can be set.
[Applications] ● Chamfering inner diameter holes.
[Specifications] - Chamfering angle (°): 60 - Chamfering diameter (mm): 3 to 41 - A (mm): 42 - B (mm): 65 - C (mm): 108 - Shank size: MT2 - Model: 2-42 ● Applicable blade: KP01-340 ● Cutter tip angle (°): 60
[Specification 2] ●For drilling machines and electric drills
