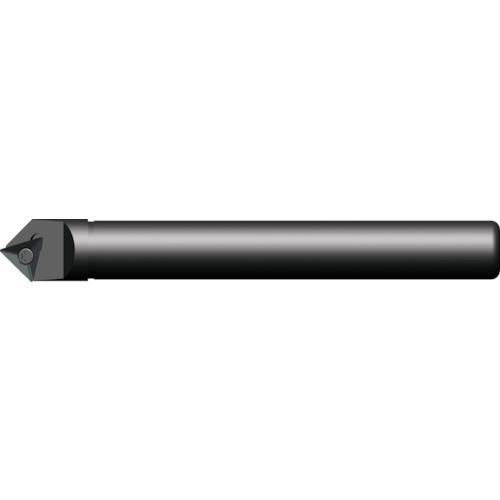

FUJIGEN Ecomen

[Features]● The customer's processing cost is reduced by making the tip 3-cornered. ●Improved tip shape and cutting edge specifications improve machinability and chip discharge. ●Long life is achieved by applying a new coating to the ultrafine particle base material.

[Applications] ● For center hole/momitsuke processing, countersunk chamfering, and edge chamfering.

[Specifications] Shank diameter (mm): 20 Blade diameter (mm): φ1.2 to φ21.6 Number of blades: 1 Tip angle (°): 90 Overall length (mm): 170 Maximum chamfer diameter (mm): φ21.6 ● Neck length (mm): 30 ● Shank length (mm): 140 ● Applicable tip: TXMT16T306

[Specification 2]
-

[Material/Finish] Steel

[Set Contents/Accessories] ●Clamp screw, wrench (tip sold separately)

[Note] ● EML2045TH is equipped with an oil hole.
