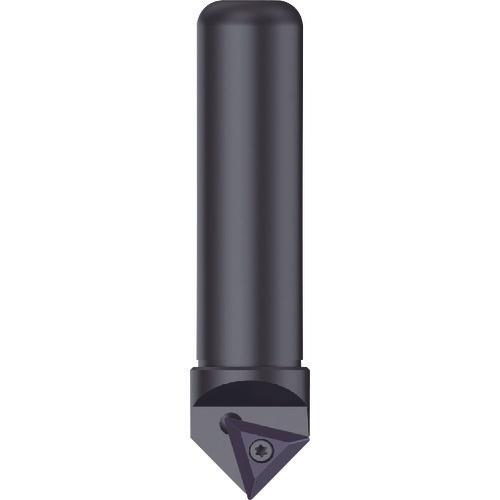

FUJIGEN Dodeca Eco

[Features]● Machining costs are reduced by making the tip 3-cornered. ●Improved tip shape and cutting edge specifications have improved machinability and chip discharge. ● AC16N material achieves a long life by applying a new coating to ultra-fine particle carbide.

[Use]
-

[Specifications] - Shank diameter (mm): 32 - Minimum chamfer diameter (mm): 1.6 - Blade diameter (mm): 37.1 - Number of blades: 1 - Tip angle (°): 90 - Overall length (mm): 150 Maximum chamfer diameter (mm): 36.0 ● Shank size: 32 ● Shank length (mm): 110 ● Applicable tip: TXMT270506

[Specification 2] Number of blades: 1

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
