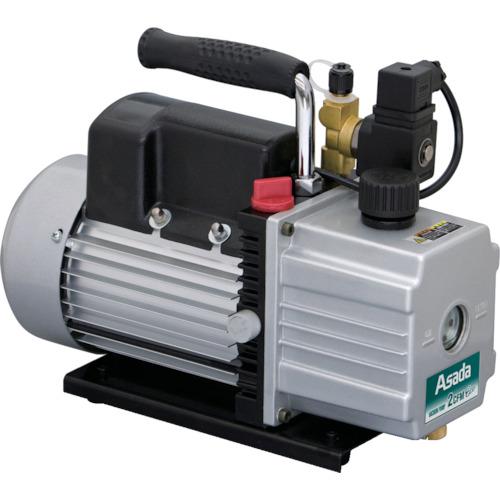

ASADA Vacuum Pump 2CFM Eco

[Features]
● Compatible with new refrigerants (HFC) and conventional refrigerants.
●Equipped with an electromagnetic oil backflow prevention valve to prevent backflow of vacuum pump oil and damage to HFC refrigerant equipment.
●High vacuum with 2-stage rotary pump.
●Equipped with a large sight glass that makes it easy to check the oil level and deterioration of the oil.
●Equipped with an overload protection device to prevent damage to the motor.

[Use]
● For vacuum drawing, drying work, and vacuum testing of car air conditioners, large refrigerators, commercial refrigeration and air conditioning equipment, room air conditioners, package air conditioners, etc.

【specification】
●Exhaust speed (L/min) 50/60Hz: 51/57
- Width (mm): 315
- Depth (mm): 124
- Height (mm): 240
-Power supply (V): 100
Power consumption (W) (50/60Hz): 250/210
- Noise level (dB): 65

[Specification 2]
-Power supply: AC100V (50/60Hz)
●High vacuum 2 stage
With electromagnetic oil backflow prevention
Degree of vacuum (Pa abs.): 3.0 (25 microns)
● Pump speed (min [[-1 power]]): 2880 (50Hz) / 3440 (60Hz)
- Suction port: 1/4, 5/16 (ASVEL)

[Material/Finish]
●Aluminum
●Steel material
●Resin

[Set contents/accessories]
●Vacuum pump oil
