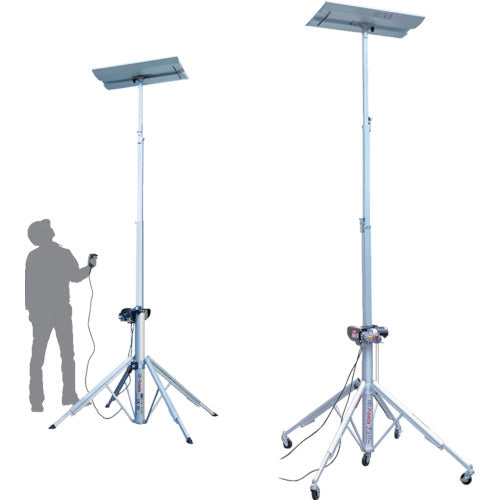

ASADA electric wire upper UE-370

[Features]
The lifting speed can be fine-tuned.
It can be switched to manual mode when there is no power supply or when there is a power outage.
Since it is a wire winch type, there is no sudden jumping out due to repulsion, and it moves up and down smoothly.

[Use]
Installation of air conditioning equipment, installation and dismantling of ducts, installation of deck plates, shutters, pipes, etc. from construction equipment.

【specification】
Maximum load (kg) When 5 legs are grounded: ~ 3m: 120/3 ~ 3.5m: 100/3.5m ~: 80
Maximum load (kg) When four legs are grounded: ~3m: 100/3~3.5m: 80/3.5m~: 70
Frontage (mm): 1110
Depth (mm): 1100
Height (mm): 1150-3750
Top plate dimensions (mm): 745 x 435
Lifting Time (sec) Ascend/Descend: 40/35
Height (mm): 1150-3750

[Specification 2]
Lifting method: speed controller, manual
Storage dimensions (frontage x depth x height): 310 x 250 x 1075mm (UE300) / 310 x 250 x 1135mm (UE370)

[Material/Finish]
-

[Set contents/accessories]
-

【caution】
Mounting tool weight up to 500g.
When using it as a screwdriver, do not apply excessive force.
A third-party key adapter cannot be attached to the quick catcher.
Insert the bit as far as it will go and make sure it does not come off before using.
Firmly hold the bit when attaching or detaching to prevent accidental dropping.
