[Features]● Since the test pressure can be raised and lowered, it is possible to easily find leak points that are difficult to find with hydrostatic pressure. ●It is possible to test pulsating water pressure and static water pressure with one unit.

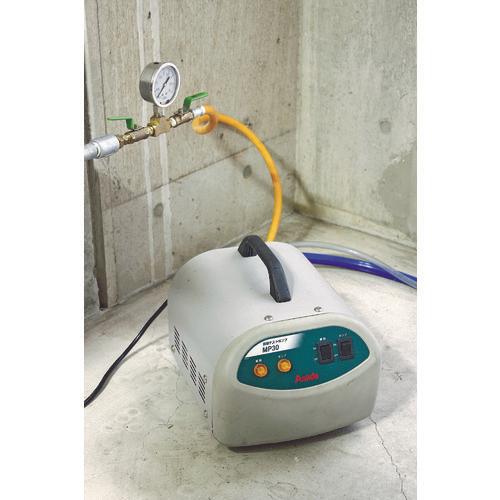

[Use] ●Finding poor insertion and insufficient tightening of mechanical joints for joining cross-linked polyethylene pipes and polybutene pipes. ●Detection of missing or insufficient amount of adhesive when joining vinyl chloride pipes. ●Failure of copper pipe brazing was found. ●Pressure water leakage test for resin pipes for water supply, hot water supply, various mechanical joints, etc.

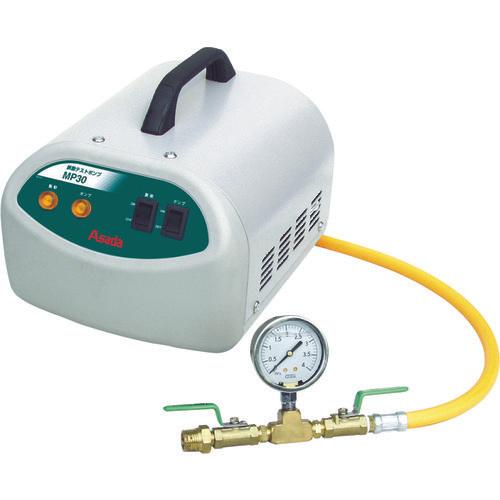

[Specifications] Discharge rate (L/min) 50 Hz: 3 Discharge rate (L/min) 60 Hz: 3.7 Maximum pressure (MPa): 2.5 (still water), 2 (pulsation) Output (W): 200 ●Noise level (dB): - ●Adapter: PT1/2 ●Water intake diameter: G1/2 ●Discharge diameter: G1/4 ●Number of pulsations: 24 times/minute ●Overall width x overall length x overall height (mm): 255 x 329 x 240
