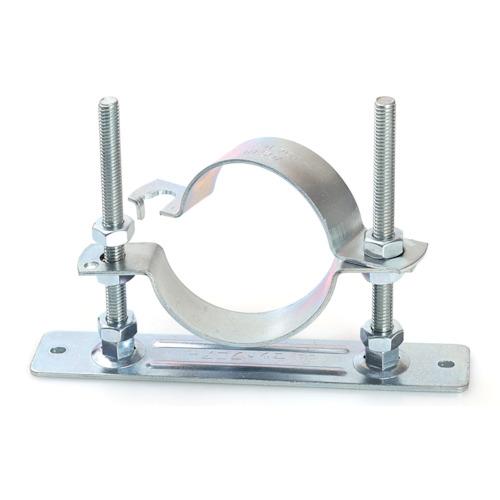

AKAGI TN set plate with floor nut (for fireproof double layer pipe) 65AX120H

[Features] ● Uses a plate with a nut that allows all screws to be removed freely. ●Electrogalvanized finish.

[Use] ● Level adjustment band for drain pipes (double-layer fireproof pipes).

[Specifications] - Applicable tube outer diameter (mm): 92.0 - Level range (mm): 51 to 110 - P (mm): 205 - Height (mm): 120 - L (mm): 225

[Specification 2]
-

[Material/Finish] Hot rolled mild steel plate

[Set contents/accessories]
-

【Note】
-
